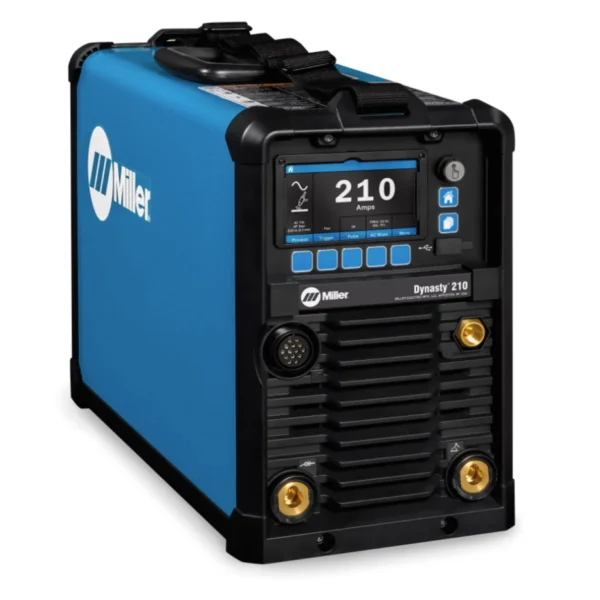

Miller Dynasty 210 TIG Welder Auto-Line 120-480V with CPS (907816001)
$4,315.00
- Description
- Additional information
- Reviews (0)
Description
Miller Dynasty 210 TIG Welder Auto-Line 120-480V with CPS (907816001)
Miller Dynasty 210 TIG Welder Auto-Line 120-480V with CPS (907816001) offers pulse on/off, pulse frequency, peak duty cycle, background amperage, initial amperage, initial slope time, final slope time and final amperage control.
New Features
• Memory Card Port – Easily update software & expand product features
• Cooler Power Supply (CPS) – Integrated 120-volt dedicated use receptacle for the coolmate 1.3
• Cooler-On-Demand – Feature operates the auxiliary cooling system only when needed
• Pro-Set – Eliminates the guesswork when setting weld parameters
• Standby / Power Switch / Sleep Time – Programmable feature will power down the machine if is sits idle for a specified time
Quick Specs
• Process: AC/DC TIG/Stick
• Input Power: 1 or 3 Phase (120-480V)
• Amperage Range: 1-210 A
• Material Thickness: .002 – 1/4″ Steel | .012 – 1/4″ Aluminum
• Dimensions: 22.4″L X 8.6″W X 13.6″H
• Weight: 47 lbs
• AC Balance: 50-99%
• AC Frequency: 20-400 Hz
• Pulse: Off – 500 PPS
| MPN: | MIL907816001 |
|---|---|
| UPC: | 715959698108 |
| Processes | AC/DC TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW) |
| Designed For | Shipbuilding Racing Farm and Ranch Manufacturing Heavy Equipment Railcar Aerospace Construction and Fabrication |
| Amperage | 1–210 A (DC) 2–210 A (AC) |
| Material Thickness | Aluminum 0.012 in. (0.3 mm) – 1/4 in. (6.4 mm) Steel 0.020 in. (0.5 mm) – 1/4 in. (6.4 mm) |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Input Voltage | 110/115/120 V 208 V 220/230/240 V 380/400 V 460/480 V |
| Input Phase | 1- and 3-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | AC / DC |
| Rated Output | 210 A at 18.4 V, 60% duty cycle |
| Max Open Circuit Voltage | 80 VDC |
| Portability | Handle(s) Running Gear / Cart (Optional) Strap |
| Weld Output | 210 A at 18.4 V, 60% duty cycle |
| Weight | 47 lb. (21.3 kg) |
| Warranty | 3 Years Miller’s True Blue Warranty |
