Miller Millermatic 252 MIG Welder With 30A Spool Gun (951960)
$4,270.00
- Description
- Additional information
- Reviews (0)
Description

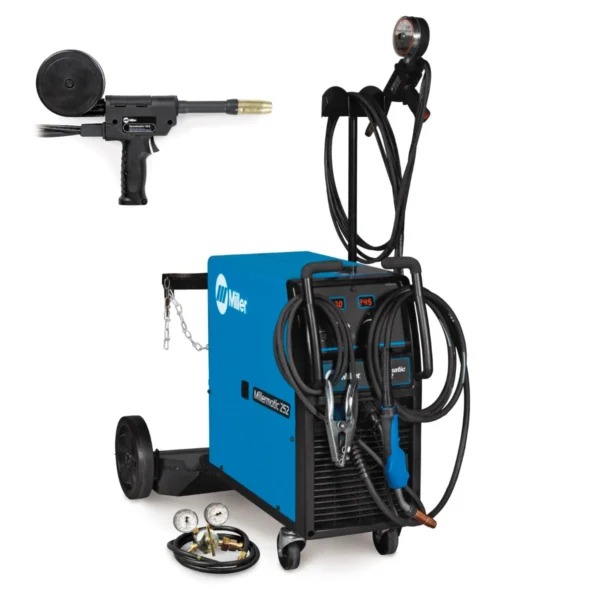

Miller Millermatic 252 MIG Welder With 30A Spool Gun (951960)
Miller Millermatic 252 MIG Welder With 30A Spool Gun (951960) can weld material from 22 gauge to 1/2in thick in a single pass and has the highest output in its class, this package includes a Spoolmatic 30A Gun!
| MPN: | MIL951960 |
|---|---|
| UPC: | 715959696784 |
| Processes | Flux-Cored|MIG |
| Designed For | Racing Farm and Ranch Manufacturing Welding Education and Training |
| Amperage | 30 A – 300 A |
| Material Thickness | Aluminum 14 ga. (1.9 mm) – 3/8 in. (9.5 mm) Mild Steel 22 ga. (0.6 mm) – 1/2 in. (12.7 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 60 Hz |
| Input Phase | DC |
| Rated Output | 200 Amps at 24 VDC, 60% duty cycle,250 Amps at 26.5 VDC, 40% duty cycle |
| Max Open Circuit Voltage | 38 VDC |
| Wire Feed Speed | 1.3 m/min – 17.8 m/min 50 IPM – 700 IPM |
| Wire Diameter | Stainless 0.023 in. – 0.045 in. Stainless 0.6 mm. – 1.2 mm. Solid Steel 0.6 mm. – 1.2 mm. Solid Steel 0.023 in. – 0.045 in. Flux Cored 0.03 in. – 0.045 in. Flux Cored 0.8 mm. – 1.2 mm. |
| Spool Size | 12 in (305 mm) |
| Portability | Running Gear / Cart (Standard) |
| Weld Output | CV |
| Weight | 205 lbs |
| Warranty | 3 Years Miller’s True Blue Warranty |
