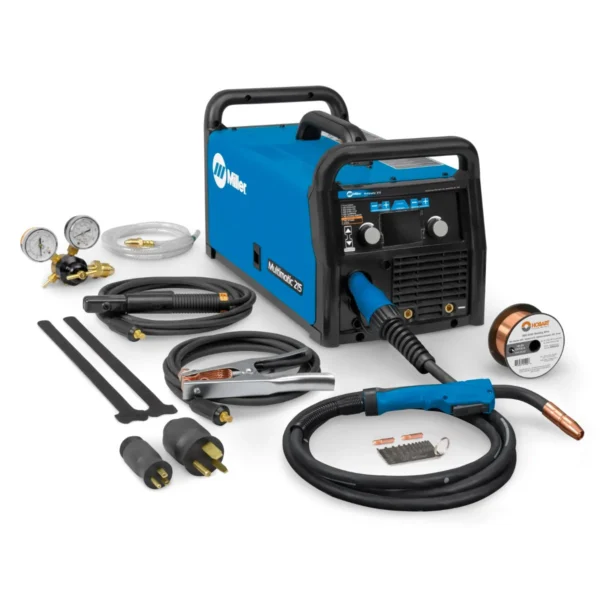

Miller Multimatic 215 Auto-Set Multiprocess Welder (907693)
$1,375.00
- Description
- Additional information
- Reviews (0)
Description
Miller Multimatic 215 Auto-Set Multiprocess Welder (907693)
Miller Multimatic 215 Auto-Set Multiprocess Welder (907693) backed by Miller’s 3-year True Blue Warranty, this 38 lb. workhorse is built to last. MIG 3/8”, TIG 3/16”, Stick 3/8”.
When Miller Electric releases a new machine, they don’t just add another toy to the sandbox of options; they create a whole new playground! The Miller Multimatic 215 Auto-Set Multiprocess Welder (907693) is the latest offering in Miller’s line of go-anywhere, do-anything machines. Building upon the success of its smaller, inverter-based predecessors, the Miller Multimatic 215 is designed to reclaim Miller Electric’s dominance in the multi-process welding market.
| MPN: | MIL907693 |
|---|---|
| UPC: | 715959624312 |
| Processes | Flux Cored (FCAW)MIG (GMAW)MultiprocessStick (SMAW)TIG DC (GTAW-DC) |
| Designed For | Racing Farm and Ranch Welding Education and Training |
| Amperage | 20 A – 230 A |
| Material Thickness | Mild Steel 24 ga. – 3/8 in. (MIG) Mild Steel 24 ga. -3/16 in. (TIG) Mild Steel 16 ga. – 3/8 in. (Stick) Aluminum 18 ga. – 3/8 in (MIG) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Rated Output | (MIG): 110 A at 19.5 V, 60% duty cycle 200 A at 24 V, 20% duty cycle 150 A at 21.5 V, 40% duty cycle (TIG): 140 A at 15.6 V, 40% duty cycle (STICK): 90 A at 23.6 V, 40% duty cycle |
| Max Open Circuit Voltage | 58 VDC |
| Wire Feed Speed | 1.8 m/min – 10.8 m/min 70 IPM – 425 IPM |
| Wire Diameter | Stainless 0.024 in. – 0.035 in. Stainless 0.6 mm. – 0.9 mm. Solid Steel 0.6 mm. – 0.9 mm. Solid Steel 0.024 in. – 0.035 in. Flux Cored 0.03 in. – 0.045 in. Flux Cored 0.8 mm. – 1.2 mm. |
| Spool Size | 8 in (203 mm) |
| Portability | Handle(s) Running Gear / Cart |
| Weld Output | CC / CV |
| Weight | 38 lbs |
| Warranty | 3 Years Miller’s True Blue Warranty |
