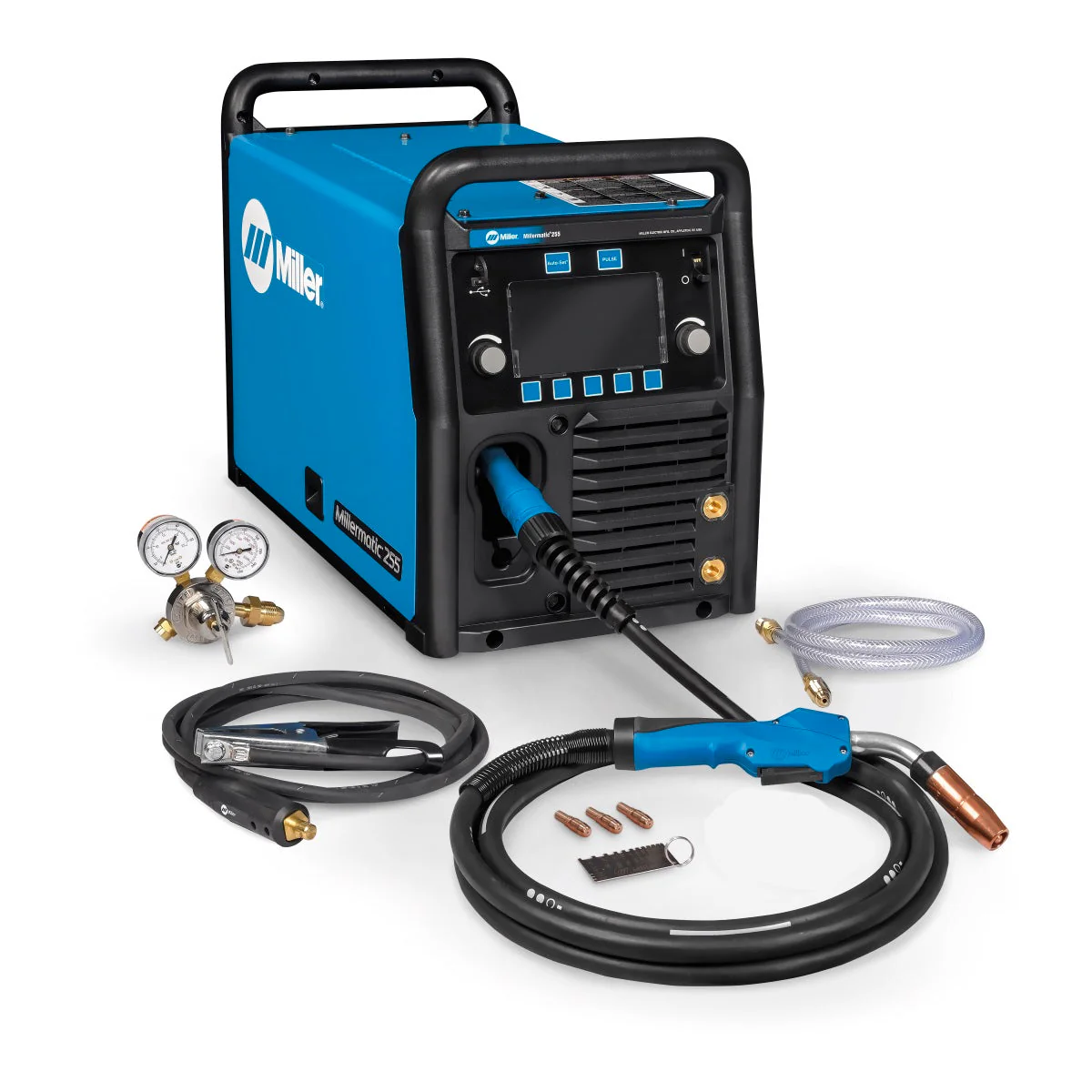

Miller Millermatic 255 MIG/Pulsed MIG Welder- 208/240V (907734)
Miller Millermatic 255 MIG/Pulsed MIG Welder- 208/240V (907734) is designed for the light manufacturing and fabrication users who want a smaller, versatile workhorse that is easy to setup and easy to use. This 250-amp inverter welder can be integrated on running gear for easy movement around the work area or it can be quickly disconnected from the running gear enabling portability, making it easier to integrate into a work cell or work in confined spaces.
| MPN: | MIL907734 |
|---|---|
| UPC: | 715959668873 |
| Processes | MIG (GMAW), Pulsed MIG, Flux Cored (FCAW) |
| Designed For | Racing Farm and Ranch Auto Repair Manufacturing Welding Education and Training |
| Amperage | 20 A – 350 A |
| Material Thickness | Aluminum 18 ga. (1.2 mm) – 1/2 in. (12.7 mm) Mild Steel 24 ga. (0.5 mm) – 1/2 in. (12.7 mm) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Input Phase | DC |
| Rated Output | 230 A at 25.5 V, 60% duty cycle |
| Max Open Circuit Voltage | 87 VDC |
| Wire Feed Speed | 1.3 m/min – 20 m/min 50 IPM – 800 IPM |
| Wire Diameter | Aluminum 0.035 in. – 0.047 in. Aluminum 0.9 mm. – 1.2 mm. Stainless 0.023 in. – 0.045 in. Stainless 0.6 mm. – 1.2 mm. Solid Steel 0.6 mm. – 1.2 mm. Solid Steel 0.023 in. – 0.045 in. Flux Cored 0.03 in. – 0.045 in. Flux Cored 0.8 mm. – 1.2 mm. Silicon Bronze 0.030 in. – 0.035 in. Silicon Bronze 0.8 mm – 0.9 mm. |
| Spool Size | 12 in (305 mm) |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Weld Output | CV |
| Weight | 84 lbs |
| Warranty | 3 Years Miller’s True Blue Warranty |
