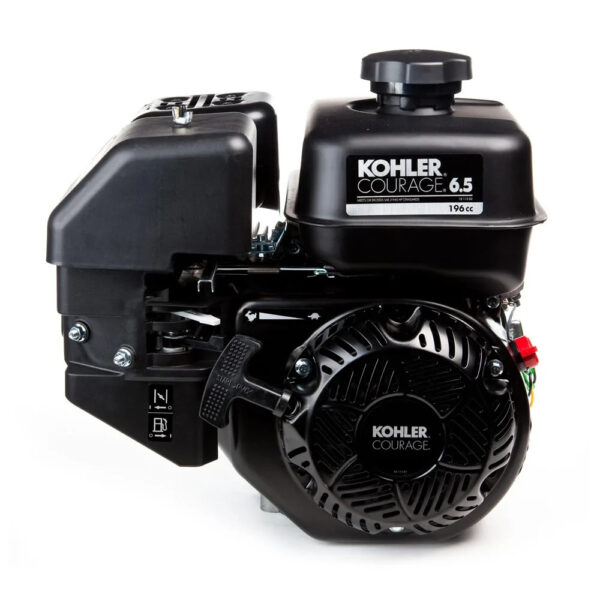

Kohler SH265-3011 Horizontal Engine
$171.00
- Description
- Additional information
- Reviews (0)
Description
Kohler SH265-3011 Horizontal Engine
Kohler SH265-3011 Horizontal Engine is 196cc and puts out 6.5 HP (maximum horsepower). This SH265 has a 3/4″ x 2.42″ crankshaft, an indexable recoil starter and a large capacity muffler with heat shield.
Key Specifications
| BRAND | Kohler |
|---|---|
| MODEL NUMBER | SH265-3011 |
| WARRANTY | 2 Year Consumer / 90 Day Commercial |
| SHIPPING WEIGHT | 40 |
| DISPLACEMENT | 196cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2.42″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2.42″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Bowl |
| CHOKE CONTROL | Manual and Remote |
| BOLT CIRCLE | None |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
